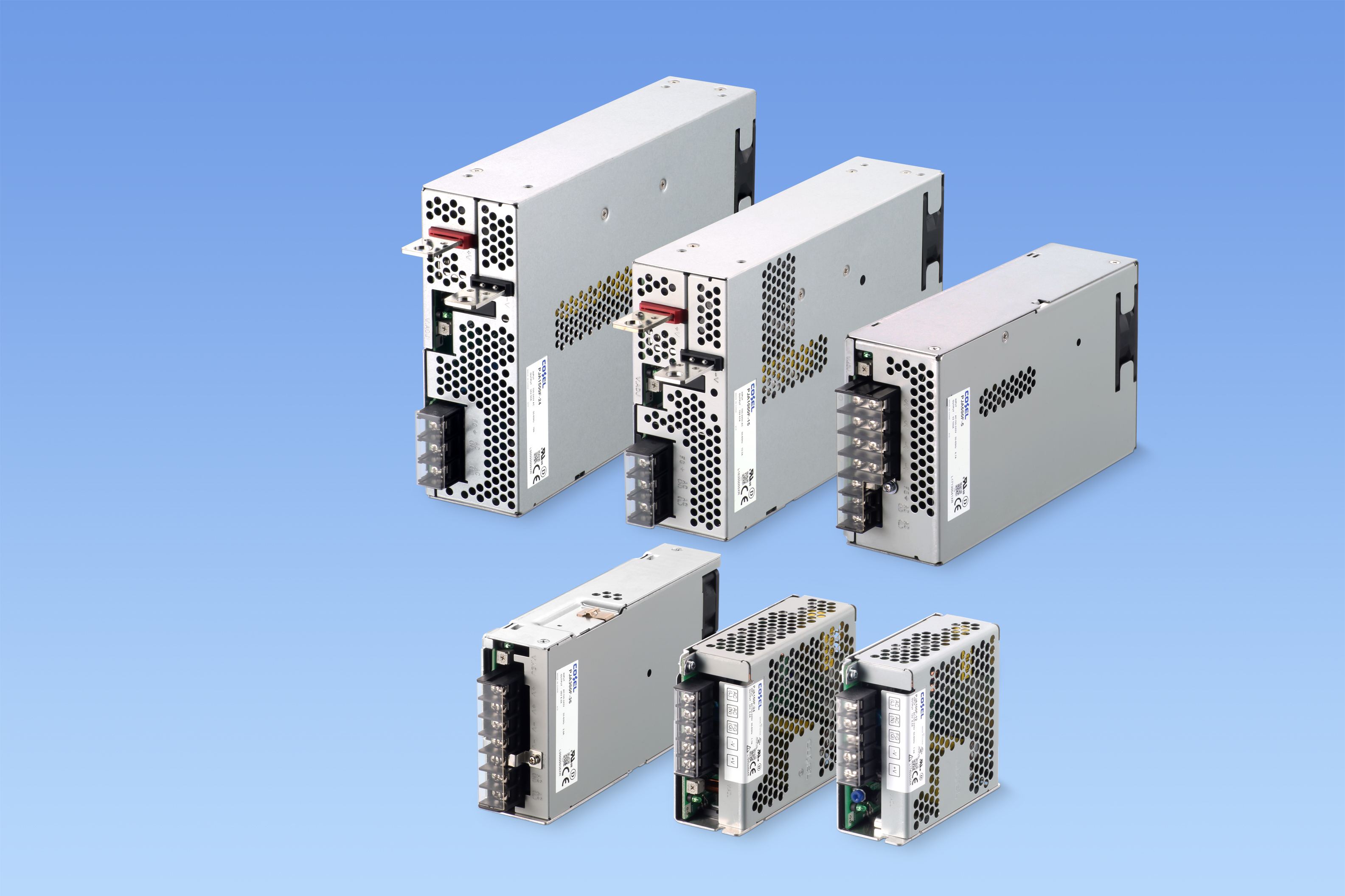

PJA Series

PJA Series

PJA Series

Categories: ,

Description

  • Economical design
  • Wide temperature range (-20℃ to +70℃, Derating is required)
  • Harmonic attenuator (Complies with IEC61000-3-2 Class A)
  • Universal input (AC85-264V, Derating is required)
  • Various option
  • Compact design 25% smaller (Compared with PBA series)
  • Low power consumption (1.5W typ AC240Vin at no load)
  • Optional connector (Vertical terminal block, Header connector)
  • Low profile design
    PJA100F, 150F, 300F(1U size)
    PJA600F , 1000F, 1500F(2U size)
  • Complies with SEMI F-47
