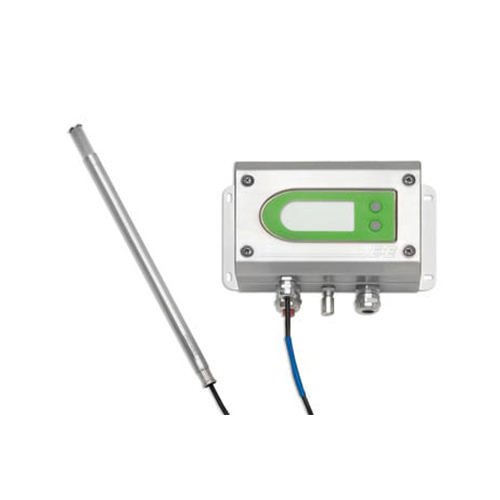

EE300Ex Humidity and temperature transmitter for intrinsically safe applications

EE300Ex Humidity and temperature transmitter for intrinsically safe applications

Description

The EE300Ex humidity and temperature transmitter is dedicated for measurement in explosion hazard areas. It complies with the classifications for Europe (ATEX), International (IECEx) and USA / Canada (FM) and can be employed in gas and dust explosion hazard areas. The intrinsically safe EE300Ex can be installed in the explosion hazard area even in zones 0 / 20 (Divison 1).

The 2-part enclosure facilitates easy installation and dismounting for calibration without time-consuming wiring. The robust and easy-to-clean stainless steel housing is optimized for the pharmaceutical and chemical industries. The well proven E+E humidity sensor technology grants reliable, long-term stable measurements in challenging applications.

Besides measurement of relative humidity and temperature, the EE300Ex calculates all humidity related parameters, such as dew-point temperature [Td], wet-bulb temperature [Tw], absolute humidity [dv], etc. The intrinsically safe humidity and temperature transmitter features two 4-20 mA outputs in 2-wire technology.

Moisture in oil measurement

In the same way as humidity measurement in air, the EE300Ex is appropriate for moisture in oil measurement. The moisture content of oil can be issued absolute as water content in [ppm] or relative as water activity [aw]. Typical applications for moisture in oil measurement are found in systems for cleaning/drying oil or on oil platforms for online monitoring of lubrication and gear oils.

Features/benefits

  • For gas and dust applications
  • Direct mounting in zones 0 / 20
  • All humidity related parameters
  • Best precision up to 180°C (356 °F)
  • Pressure-tight up to 300 bar (4351 psi)
  • Wall mount or remote probe versions
  • Water content and water activity in oil

Typical applications

  • Chemical industry
  • Pharmaceutical industry
  • Painting cabinets
  • Explosion hazard storage rooms
  • Power stationsGrain mills
  • Oil platforms
  • Moisture in oil measurement
