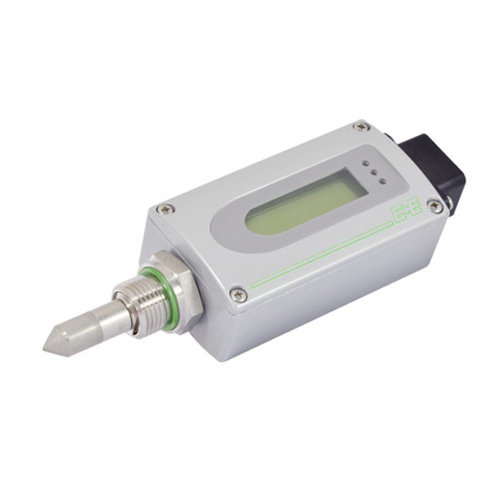

EE371 Compact Dew Point Sensor

EE371 Compact Dew Point Sensor

Description

EE371 is dedicated for accurate and reliable monitoring of the dew point temperature (Td) in the range -60…60 °C Td (-76…140 °F Td), with pressure rating up to 100 bar (1 450 psi). It is ideal for compressed air systems and industrial process control. Besides Td, the device measures also frost point temperature (Tf) or volume concentration (Wv).

The EE371 features the innovative, monolithic E+E HMC01 humidity and temperature sensing element. In combination with a sophisticated auto-calibration procedure, this leads to accuracy better than ±2°C Td (±3.6 °F Td) and to excellent long term stability.

The robust metal enclosure, the swirling front-end, various process connections and sampling options allow for easy and comfortable design-in, mounting and operation. The measured data is available on two freely configurable voltage or current outputs as well as on the LCD display.

An optional adapter and the free EE-PCS Product Configuration Software facilitate easy configuration and adjustment of the EE371.

Key Features

  • Accuracy ±2°C Td (±3.6 °F Td)
  • Auto-calibration
  • Pressure rating up to 100 bar (1450 psi)
  • 360° swirling front-end
