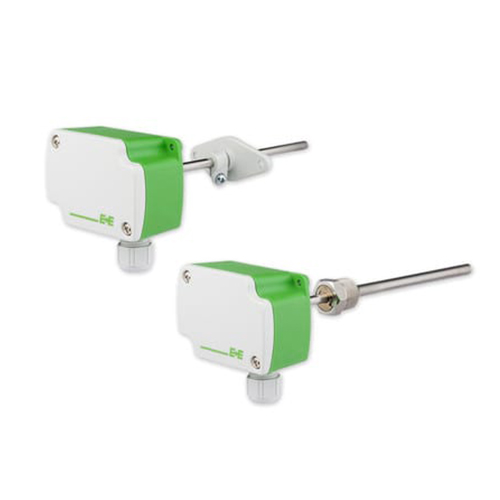

EE431 Duct / Immersion Temperature Sensor

EE431 Duct / Immersion Temperature Sensor


The EE431 measures accurately the temperature of air or liquids in building automation, HVAC and process control.

The measured data is available on the voltage or current output, as well as on the RS485 interface with Modbus RTU or BACnet MS/TP protocol. Alternatively, the EE431 features a passive output with a wide choice of temperature sensing elements.

The device can be mounted either with the plastic mounting flange or via external mounting holes at the enclosure. The innovative immersion well is dedicated for measurement in liquids and allows for fast and safe replacement of the sensor. The EE431 with RS485 interface is appropriate for daisy-chain wiring.

An optional adapter and the free EE-PCS Product Configuration Software facilitate the setup and adjustment of the EE431.


  • IP65 / NEMA4
  • External mounting holes
  • Bayonet screws

Mounting flange

  • Clamp ring
  • Special seal

Immersion well

  • Innovative mounting spring
